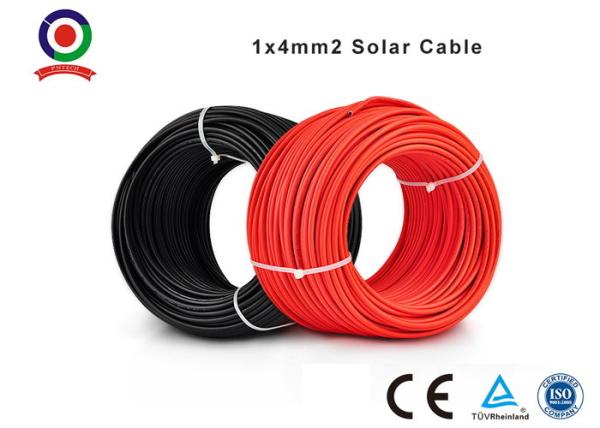

High Electrical Conductivity Single Core Electrical Cable 6.0mm OD 4.0mm2 Black Or Red

  • 1
  • 2

Brand Name : Pntech

Model Number : PV1-F 1x4mm2

Certification : TUV/CE/CQC/ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 70000 Meters per Day

Delivery Time : 3-15days

Packaging Details : 250m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Product name : DC single core solar cable

Material : XLPE

Conductor : Tinned Copper

Construction : 56/0.3mm

Thickness : 0.8mm

Resistance : 5.09 Ω/km (MAX. at 20℃)

Cable OD : 6.0mm

Color : Black or Red

Contact Now

XLPE insulated 2PFG 1169 DC single core Solar cable PV1 - F 4.0mm2 Black or Red

Description:

1. TUV and CE certificate
2. Standard: 2 PFG 1169 08.2007
3. Type: PV1-F 1x4,0mm2
4. Conductor Material : Stranded tinned copper
5. Composition(NO./mm): 56/0.3
6 .Insulation Material: XLPE
7. Min. Thickness(mm): 0.5
8. Sheath Material :XLPE
9. Outer Diameter(mm) :6.10±0.2
10. Conductor dc resistance ≤5.09Ω/km
11. Rated voltage: AC 0.6~1.0KV , DC1.8KV
12. Ambient temperature: -40~+90C
13. The expected period of use: 25years
14. Flame rated IEC60332-1-2

Cross Section
mm2
Insulation Mediun Thickness(mm)
Sheath Mediun Thickness(mm)
Electric res. At 20℃
≤ Ω/km
Testing Voltage
A.C.kv/5min
1x1.5
0.7
0.8
13.5
6.5
1x2.5
0.7
0.8
8.21
6.5
1x4
0.7
0.8
5.09
6.5
1x6
0.7
0.8
3.39
6.5
1x10
0.7
0.8
1.95
6.5
1x16
0.7
0.8
1.24
6.5


Features:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.

High Electrical Conductivity Single Core Electrical Cable 6.0mm OD 4.0mm2 Black Or RedHigh Electrical Conductivity Single Core Electrical Cable 6.0mm OD 4.0mm2 Black Or RedHigh Electrical Conductivity Single Core Electrical Cable 6.0mm OD 4.0mm2 Black Or RedHigh Electrical Conductivity Single Core Electrical Cable 6.0mm OD 4.0mm2 Black Or Red
